Tubular Steel Fence
Steel picket fenceSteel picket fenceSteel picket fenceSteel picket fenceSteel picket fence

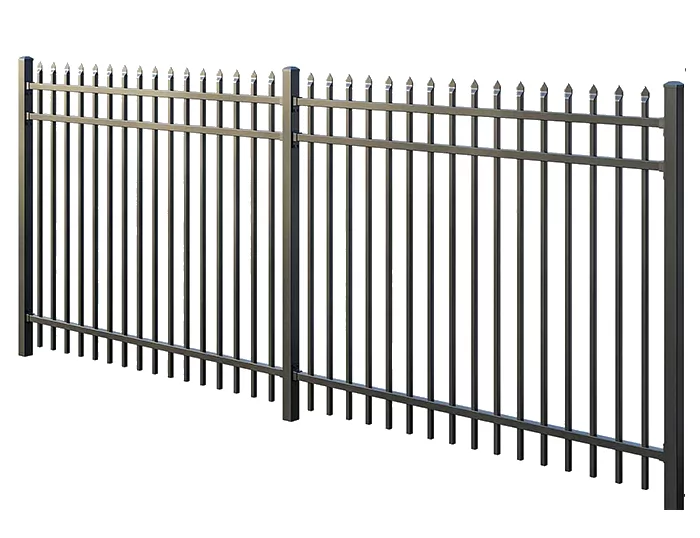

Steel picket fence


Material:               Galvanized steel tube or Aluminium tube

Certificate:           SGS, BV, ISO9001, ISO14001, ISO45001

Brand:                  HG FENCING

Manufacturer:      HUA GUANG

Origin:                  China


Inquire Now
Share:
Steel picket fenceSteel picket fenceSteel picket fenceSteel picket fenceSteel picket fence
Specification

Steel picket fence used as factory fence

☼ Steel Picket Fence Description

Steel Picket fence, known as garrison fence or tubular steel fence, consists of vertical tubes, horizontal rails, spearheads, fence posts and accessories. The horizontal railing and vertical railing are composed of panel, which is connected to the posts by anti-theft screws. The style is beautiful and diverse, which is perfect for parks, houses, yards and other places.


▶ Steel picket fence includes assembled or welded type, and there are various styles to choose from.
▶ STEEL PICKET FENCE is generally welded with galvanised or aluminium tubes and then powder coated for strong corrosion resistance.
HuaGuang company offers complete fences, including accessories and technical instructions, and the HG FENCING brand of steel picket fence can be guaranteed for more than ten years.

☼ Steel Picket Fence Specification

☼ Technical Parameters

MaterialGalvanized steel tube or aluminium tube
Panel size(mm)1800Lx1500H, 2100Lx1800H, 2400Lx 2100H, etc
Rail size (mm)25x25mm, 40x40mm, 60x60mm, etc
Pickets size (mm)15x15mm, 20x20mm, 25x25mm, etc
Square Post (mm)50x50mm, 60x60mm, 80x80,100x100, etc
Finishgalvanized and powder coated
Accessoriesposts, brackets, bolts, anti-theft screws
Other lengths, widths and specifications of steel picket fence can be customized

☼ Surface Treatment

1. Hot dipped galvanized steel picket fence

After welding, a protective layer is formed on the surface of the steel through the hot dip galvanising process. This coating can effectively prevent oxidative corrosion and prolong the service life of steel picket fence.


2. Plastic Coating (PVC Coating) or Powder Coating after galvanized steel picket fence.

We use high quality powder for spraying, which combines with the galvanised layer on the steel surface to form a more effective protective layer. It provides better protection against oxidisation and corrosion of the steel and this treatment will make the steel picket fence more aesthetically pleasing.


The difference between Plastic Coating and Powder Coating after galvanized steel picket fence.

galvanized and PVC Coated steel picket fence.jpg

☼ Details of Steel Picket Fence

The Steel Picket Fence is easy to install, just connect the panel to the post with anti-theft screws. The horizontal pipe and the vertical pipe will be used between the full weld, the weld is smooth and beautiful.
There is a rain cap on the top of the column to prevent rainwater from pouring in.
The Steel Picket Fence is welded with galvanised tubes and sprayed with high quality powder, which is guaranteed not to rust for more than 10 years.


Details of Steel picket fence

☼ Product Structure

1 fence set = 1 fence panel + 1 fence post + accessories (brackets, bolts&nuts, anti-theft screws)


1 set of Steel picket fence


☼ Popular Types:

There are many types of Steel Picket Fence, four of which are the most common: Spear top fence, flat top fence, loop top fence, extended top fence, and other types of Steel picket fence, Garrison Fence and tubular steel fence can be customised. Steel Picket fence has a wide range of applications and can be used as a park fence, residential fence, road fence, swimming pool fence and so on. Customers can choose different styles of Steel Picket fence according to different applications.

Spear top fence is the most popular type of Steel picket fence

loop top fence, Garrison Fence

loop top fence, Tubular Steel Fence

extended top fence, Steel picket fence

☼ More Types of Spear Top Fence:

The Spear Top Fence is the most common type of Steel Picket Fence, and is available in a variety of styles depending on the arrangement of the horizontal and vertical tubes, and can be customised to meet customer requirements.

Types of Spear Top Fence, Steel Picket Fence

☼ Packing of Steel Picket Fence

We put bubble film between each piece of mesh, put it on an iron pallet, fix it with strapping tape, then, wrap it with plastic film, and reinforce the corner protector with cardboard. Or we secure it with strapping tape and put it in a wooden box. When you load or unload them, you just need to operate the forklift to put the packages into the container or your warehouse, very convenient.

Packing of Steel picket fence

Drawing

Steel picket fence

Packing & Delivery
Package of Tubular Steel Fence
Package of Tubular Steel Fence
Package of Tubular Steel Fence
Package of Tubular Steel Fence
Package of Steel Picket Fence
Package of Steel Picket Fence
Package of Garrison Fence
Package of Garrison Fence
Project
Tubular Steel Fence
Tubular Steel Fence
Steel picket fence
Steel picket fence
Steel Picket Fence
Steel Picket Fence
Garrison Fence
Garrison Fence
Tubular Steel Fence
Tubular Steel Fence
Tubular Steel Fence
Tubular Steel Fence
Tubular Steel Fence
Tubular Steel Fence
Steel picket fence
Steel picket fence
