Peach Post Fence
Peach Post FencePeach Post FencePeach Post FencePeach Post Fence

Peach Post Fence


Material:              Q195 or Q235 wire and pipe

Size:                    General specifications or customized on request

Certificate:           SGS, BV, ISO9001, ISO14001, ISO45001

Brand:                  HG Fencing

Manufacturer:      HUA GUANG

Origin:                  China



Inquire Now
Share:
Peach Post FencePeach Post FencePeach Post FencePeach Post Fence
Specification

Peach Post Fence

Description of Peach Post Fence

Peach post fence is a kind of 3D curved fence, which is popular in many countries. This kind of fence does not need any bolts between mesh and posts, beautiful, better permeability, not restricted by terrain, easy to install, widely used in parks, residential buildings, stadiums, warehouses, highway or airport service areas, railway stations and other security places.


High strength, made of high quality low carbon steel or hot rolled steel cold rolled, not easy to deformation.
 Easy to install, no screws, clips, simple structure, can reduce construction costs.
Anti-demolition and anti-theft, after installation, the mesh and the column will be tightly connected and will not be easily removed.
Corrosion resistance, galvanized coating, PVC coating or powder coating, can effectively prevent the fence oxidation rust.
 Many colors, according to your environmental needs, choose the right color fence.

Specification of Peach Post Fence

Welded mesh panel:

3D curved fence panel is made of high quality steel wire. These bends will significantly enhance the sturdiness of the mesh, and there are different numbers of curves on the safety fence panels depending on the height.

Technical Parameters:

Heightwire diameterMesh openingBending meshPanel Width
830mm3.0mm- -6.0mm50* 100mm 55*100mm 50*200mm 55*200mm50*200mm 55*200mm 50*100mm 55*100mm2.5m or 3.0m
1030mm
1230mm
1430mm
1530mm
1730mm
1830mm
2030mm
2430mm
2530mm

Surface treatment:

1: hot dipped galvanized after welding

2: powder coated after galvanized wire welding

3: PVC coated after galvanized wire welding

Other lengths, widths and specifications can be customized.



galvanized 3d curved fence panelPVC coated 3d curved fence panel











Bending Type of mesh panel:

● Height: 630 mm, 830 mm, 1030 mm, 1230 mm (2 curves).

● Height: 1530 mm, 1730 mm (3 curves).

● Height: 2030 mm, 2230 mm, 2430mm (4 curves).

Bending Type of Peach Post Fence

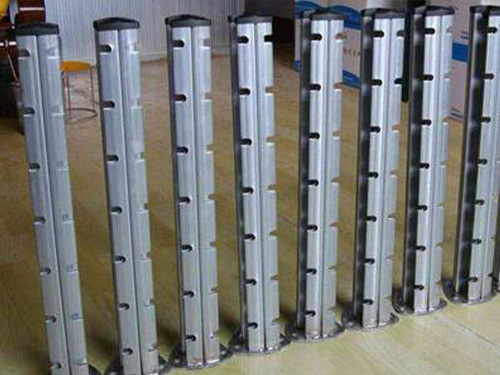

Peach Post

The peach-shaped post is named because the cross-section of the post is shaped like a peach. It is very strong because it is cold rolled from high quality mild steel plates. The outer side of the peach-shaped post becomes oval, and the inner sides have many notches from top to bottom, which is convenient to connect with the fence panel, it is very easy to install, no screws are needed, and after installation, it is very solid and will not be loosened and stolen.


●  Material: low carbon steel or hot rolled steel.

●  Popular Size: 50*70mm or 70*100mm

●  post thickness: 1mm - 1.2mm

●  post length: depending on the height of the mesh, or special sizes can be customized upon request.

●  Surface treatment:hot dipped galvanized, PVC coated or powder coated.


powder coated peach postgalvanized peach post









Surface Treatment of Peach Post Fence:

1. Hot Dipped Galvanized

Through the Hot dipped galvanizing process after welding, a protective layer is formed on the steel surface. This coating can effectively prevent oxidation corrosion and prolong the service life of steel.


2. Plastic Coating (PVC Coating) or Powder Coating after galvanized.

We choose high quality powder for spraying, which combines with the galvanized layer on the steel surface to form a more effective protective layer. It can better prevent the steel from oxidation and corrosion, Therefore, our fencing system can stay beautiful and strong for a longer time, and this treatment will make the fence more beautiful.


The difference between PVC Coating and Powder Coating after galvanized:


Galvanized and pvc coated Peach Post Fence


Details of Peach Post Fence

Installation Method of Peach Post Fence:

● Embedded the post in the earth or concrete.

● Bolted to a concrete foundation.


Embedded Peach Post FenceBolted Peach Post Fence
















Accessories of Peach Post Fence:

● Rainproof Cap

The rainproof cap of the peach post can prevent rain and snow, dust and other impurities from entering, which can prevent the corrosion inside the peach post, which will improve the service life of the square post fence.


Rainproof cap of Peach Postplastic cap of Peach Post
















Sample of Peach Post Fence

All peach post fences produced by HG Fencing company are subject to strict quality testing to ensure delivery of defect-free products to customers, who can also choose a professional testing agency for testing before shipment.


details of Peach Post Fence

show of Peach Post Fence

Popular Color of Peach Post Fence

 RAL 6005 green, RAL 7016 grey, RAL 9005 black are common colors, all RAL colors can be customized.

Peach Post Fence

Drawing

drawing of peach post fence.jpg

Packing & Delivery
Peach Post Fence
Peach Post Fence
Peach Post Fence
Peach Post Fence
Project
Peach Post Fence
PVC coated peach fence
3d curved fence
V mesh fence
