galvanized Hexagonal Gabion Basket
Hexagonal Gabion MeshHexagonal Gabion MeshHexagonal Gabion MeshHexagonal Gabion MeshHexagonal Gabion Mesh

Hexagonal Gabion Mesh


Material:               Galvanized wire, galfan wire, pvc coated wire

Certificate:           SGS, BV, ISO9001, ISO14001, ISO45001

Brand:                  HG Fencing

Manufacturer:      HUA GUANG

Origin:                  China


Inquire Now
Share:
Hexagonal Gabion MeshHexagonal Gabion MeshHexagonal Gabion MeshHexagonal Gabion MeshHexagonal Gabion Mesh
Specification

Hexagonal Gabion Mesh used for dam protection

☼ Hexagonal Gabion Mesh Description

Hexagonal gabion mesh is a common type of gabion with hexagonal holes, which is made of high tensile strength, high corrosion resistance galvanized wire, pvc coated wire or galfan wire (zinc-aluminium alloy wire) woven by fully automatic weaving machine.

Hexagonal gabion mesh includes two types of gabion box and gabion mattress, which are commonly used in river and dam protection, and can effectively prevent the scouring of embankment by water flow and prevent flooding, so it has been widely used all over the world.

☼ Technical Parameters of Hexagonal Gabion Mesh

Hexagonal Gabion Mesh


Specification of Hexagonal Gabion Mesh

Material

Wire Diameter

Selvding Wire

Lacing Wire

Mesh Opening

1. Galvanized wire

2. Hot dip galvanized wire

3. PVC coated wire

4. Galfan (zinc aluminum alloy coating) wire

95% zinc, 5% aluminum or 90% zinc 10% aluminum coating

2.0mm
2.2mm
2.4mm
2.7mm
3.0mm
3.5mm
4.0mm
3-4mm2.0-2.2mm60x80mm
80x100mm
100x120mm
120x150mm
customized

Gabion Basket Size:

2x1x0.5m

2x1x1m
3x1x1m
4x1x1m
4x1x2m
4x2x0.3m
6x2x0.3m

Gabion Mattress Size:

3x2x0.3m
4x2x0.3m
5x2x0.3m
6x2x0.3m

Note: materials, wire diameter, Mesh opening, size of the hexagonal gabion mesh can be customized

☼ Hexagonal Gabion Mesh Types

☼ According to the different materials used, hexagonal gabion mesh includes 3 types: galvanized gabion mesh, PVC coated gabion mesh, galfan coating gabion mesh.


● Type 1: Galvanized gabion mesh, a widely used type of gabion mesh, has a zinc layer on the surface of the wire, which can effectively prevent corrosion by air and water. According to the different amount of zinc, it can be divided into ordinary galvanized and high galvanized, the amount of zinc on ordinary galvanized gabion mesh is: 40-60g/㎡, and the amount of zinc on high galvanized gabion mesh is: 200-500g/㎡. The higher the zinc content, the longer the service life.

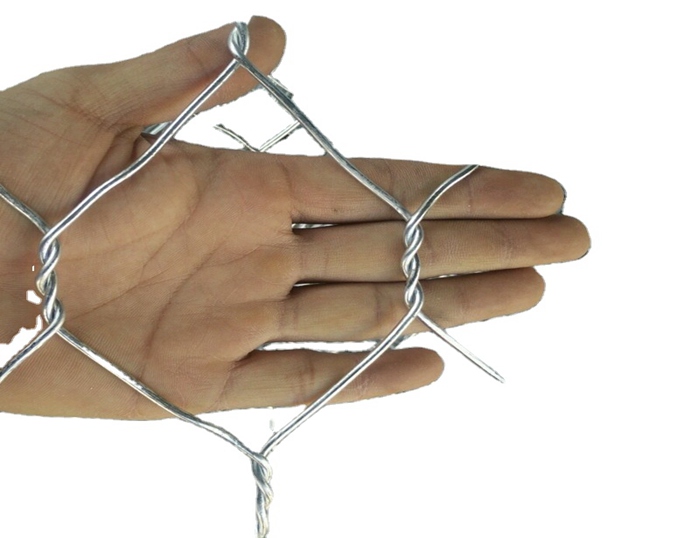

Detail of Galvanized Gabion MeshGalvanized gabion mesh used on the riverbeds

● Type 2: PVC coated gabion mesh, the inner wire is generally galvanized wire or galfan wire, the outer edge is wrapped with a layer of PVC coating, the coating thickness is generally 1mm, PVC coated gabion mesh compared to galvanized gabion mesh, has a better corrosion resistance, the service life of up to 20 years or more.

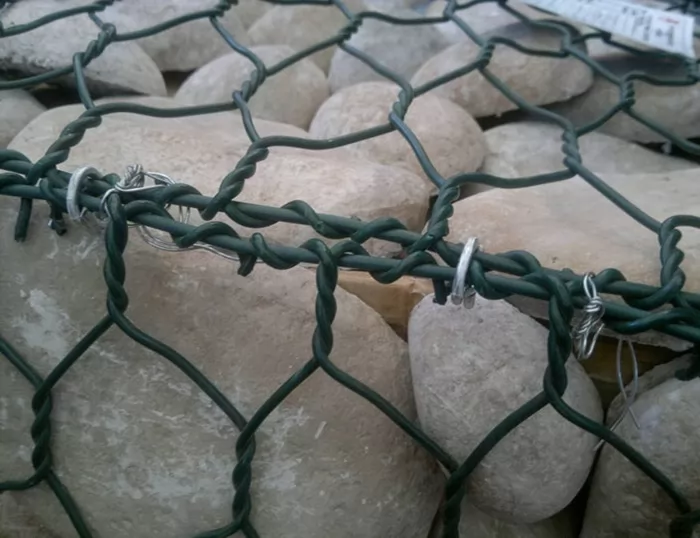

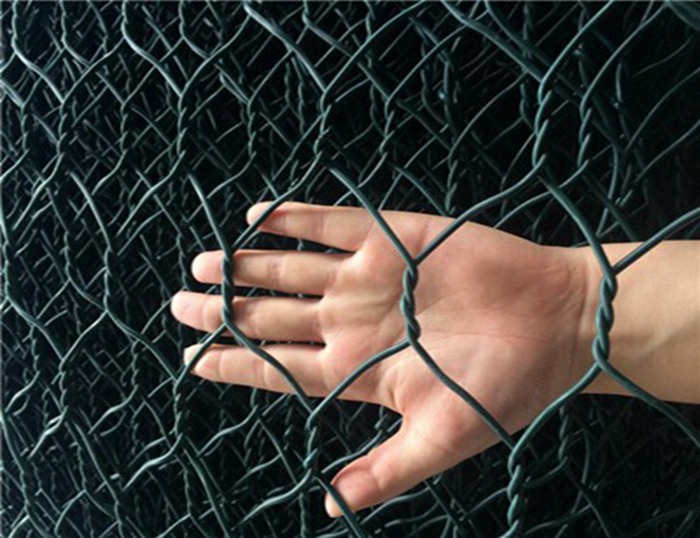

detail of PVC coated gabion meshPVC coated gabion mesh Used on riverbanks to prevent floods from scouring the banks.

● Type 3: Galfan coating gabion mesh, made from zinc aluminum alloy coating wire, including two types: 95% zinc, 5% aluminum or 90% zinc 10% aluminum coating, due to the zinc-aluminium coating, compared with galvanized gabion mesh, the corrosion resistance is stronger, and the service life is longer, generally can reach more than 50 years.

Hexagonal Galfan coating gabion meshMeshGalfan coating gabion mesh box filled with stones

☼ According to the different shapes and structures, Hexagonal gabion mesh includes, gabion basket and gabion mattress.

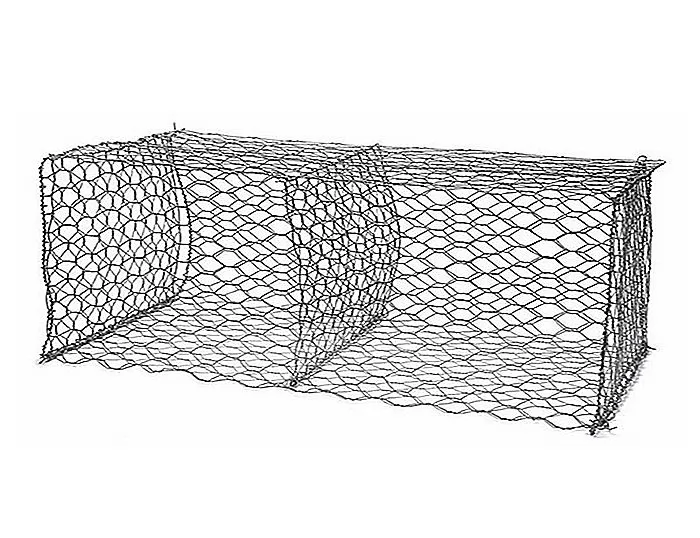

● Type 1: Hexagonal gabion basket, which can be filled with appropriate sized rocks to form a retaining wall structure. There is a diaphragm in the middle, which can enhance its strength. Gabion box is widely used in river control, dam protection, landscape and so on.

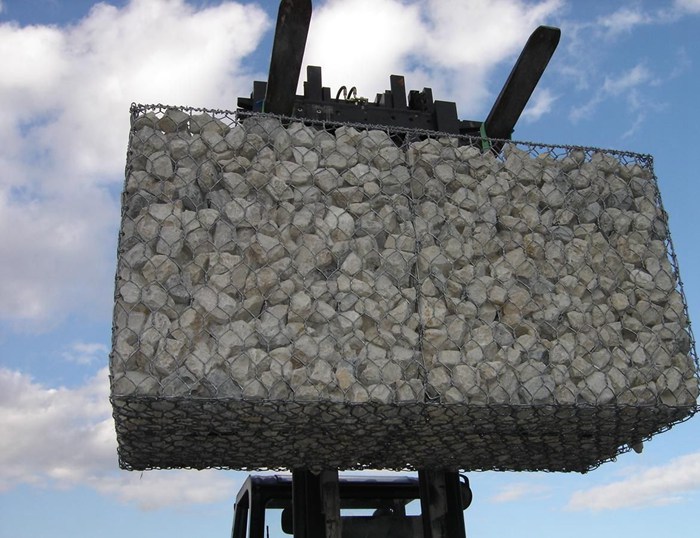

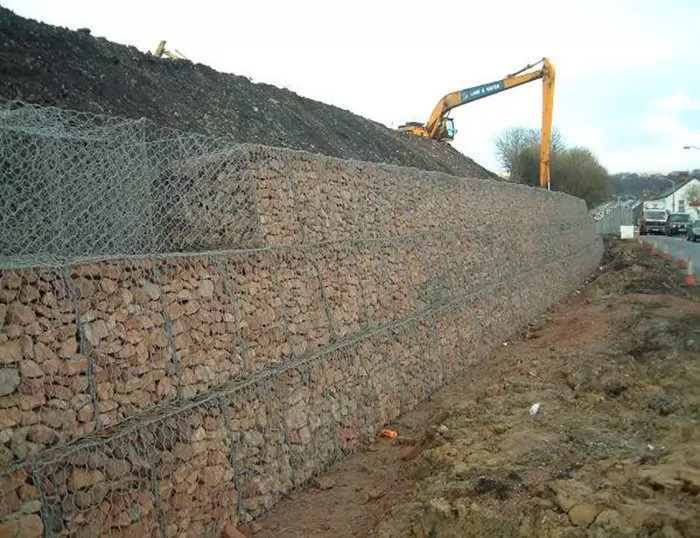

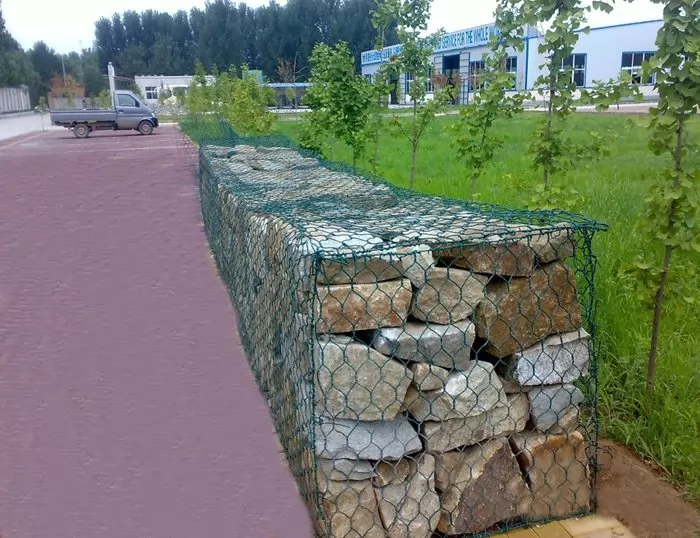

Hexagonal gabion basket filled with stones, used on riverbanks to prevent floods from scouring the banks.


● Type 2: Gabion mattress, also known as reno mattress, is a mesh box structure with a height of generally 0.3m, filled with stones, which is generally applied in slope protection or laid on the riverbed to prevent the water from scouring the riverbed.

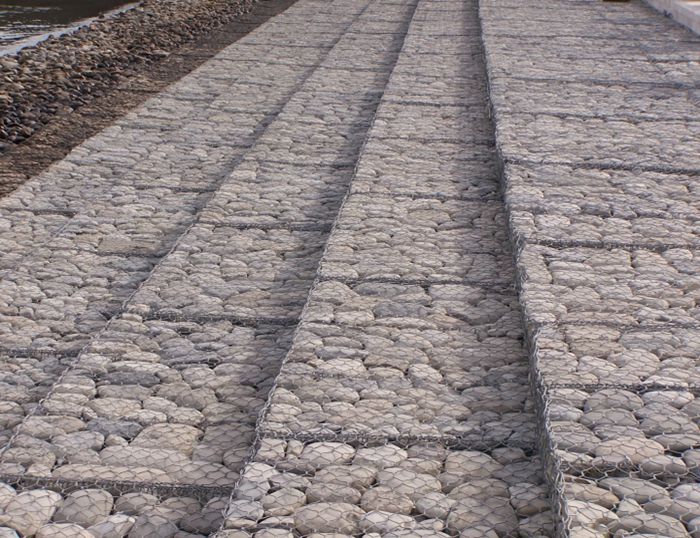

Gabion mattress used for slope protectionGabion mattress usded for protection the riverbeds

☼ Hexagonal Gabion Mesh Production

Our factory choose high quality galvanised wire, plastic-coated wire or zinc-aluminium alloy coated wire, and weave it through automatic gabion mesh weaving machine to reach the required length and then cut it. After cutting, the gabion mesh will be wrapped around the four edges on the thicker wire, and then about 100 sets of gabion mesh sheets will be stacked together, and finally compressed by the bale press machine to reduce its size for easy transportation.

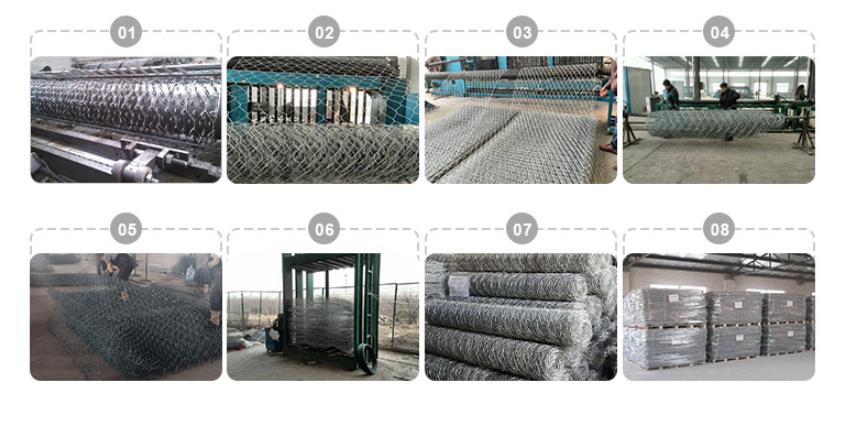

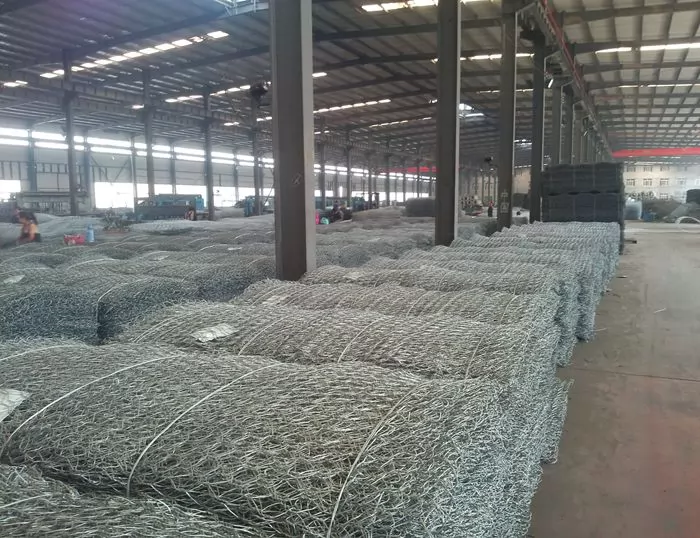

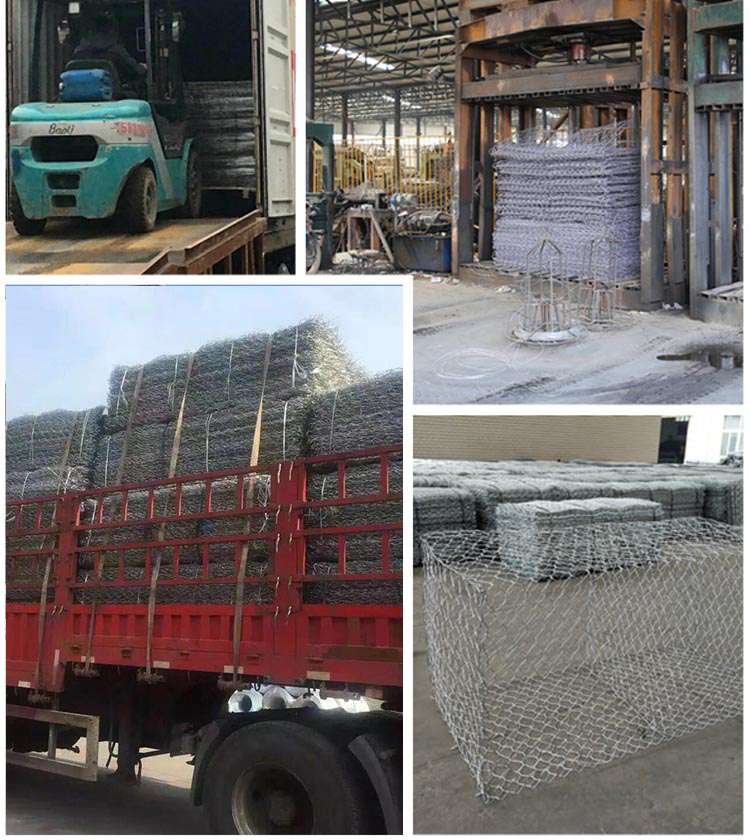

Production process of Hexagonal Gabion Mesh

☼ Installation of Hexagonal Gabion Mesh

1. Assemble the gabion box: Lay the gabion mesh flat and fasten them together securely with fasteners or wires on several sides except the top.

2. Filling the gabion box: Fill the gabion box with suitable sized stones or gravel. Ensure that the material is evenly distributed and compacted to provide stability.

3. Close the gabion box: Once the gabion box is filled, cover it with a lid or secure the top edge with wire or fasteners. This will prevent spillage of material.

Installation of Hexagonal Gabion Mesh

Drawing

Drawing of Woven Hexagonal Gabion Mesh

Packing & Delivery

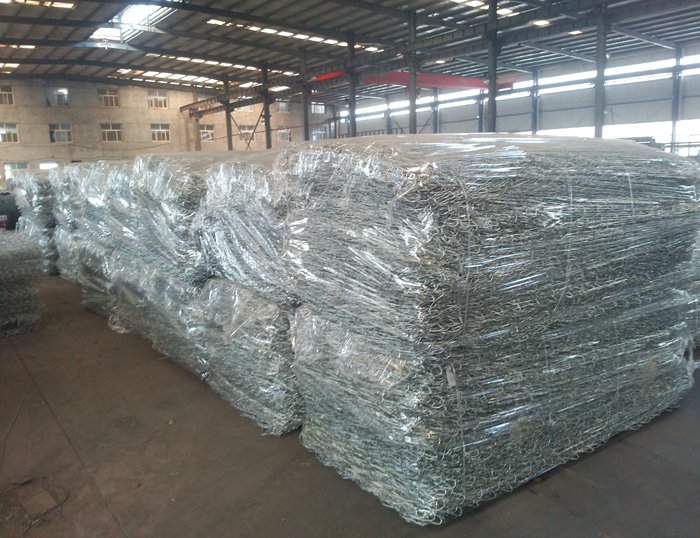

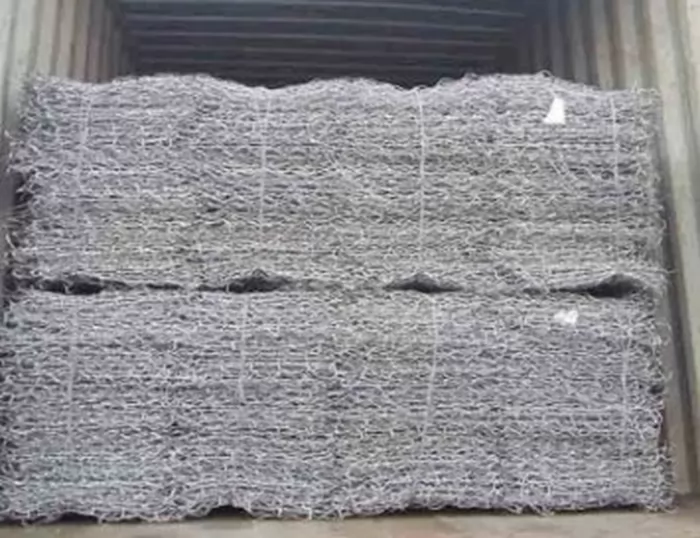

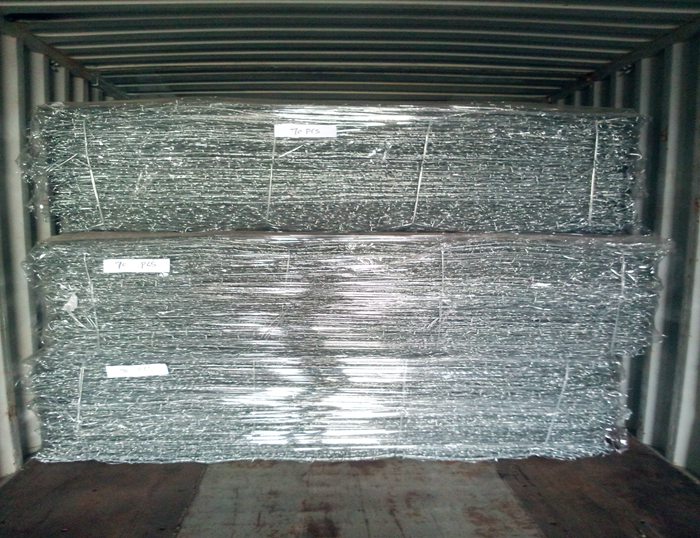

Packing of galvanized Gabion mesh
Packing of galvanized Gabion mesh
Packing of galvanized Gabion mesh
Packing of galvanized Gabion mesh
Packing of galvanized Gabion Mattress
Packing of galvanized Gabion Mattress
Packing of galvanized Gabion Mattress
Packing of galvanized Gabion Mattress

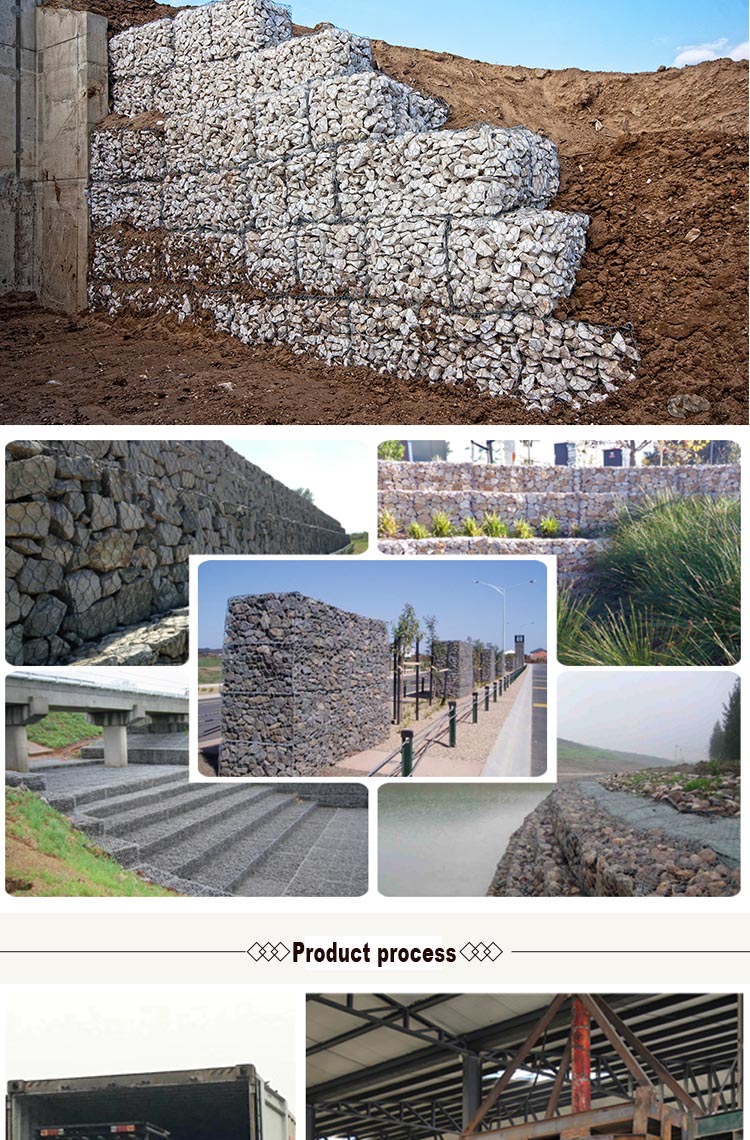

Project
Hexagonal Gabion Mesh used for dam protection
Hexagonal Gabion Mesh used for dam protection
Woven Hexagonal Gabion Basket used as landscape
Woven Hexagonal Gabion Basket used as landscape
Woven Hexagonal Gabion Meshused for dam protection
Woven Hexagonal Gabion Meshused for dam protection
Woven Gabion Mattress used for slope protection
Woven Gabion Mattress used for slope protection
