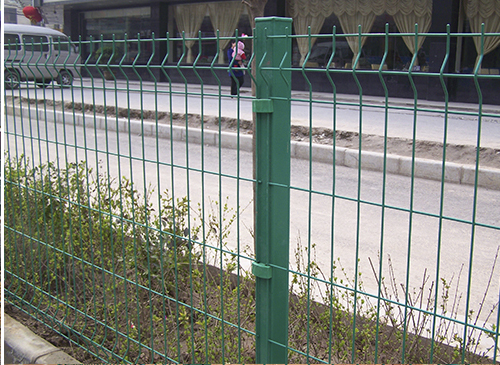

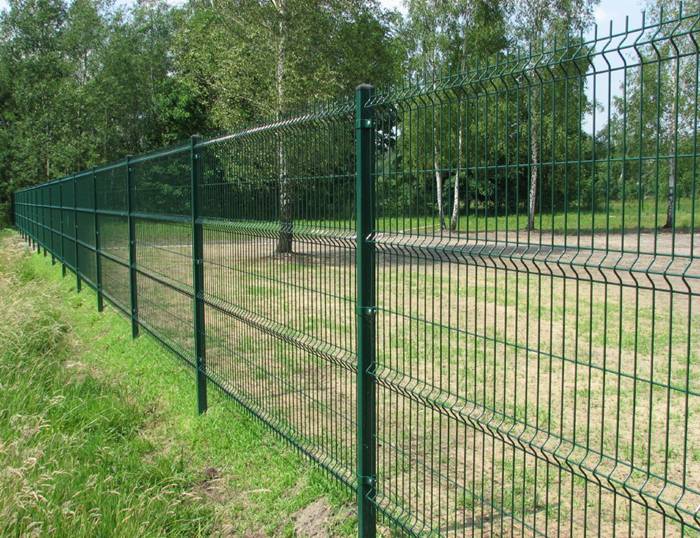

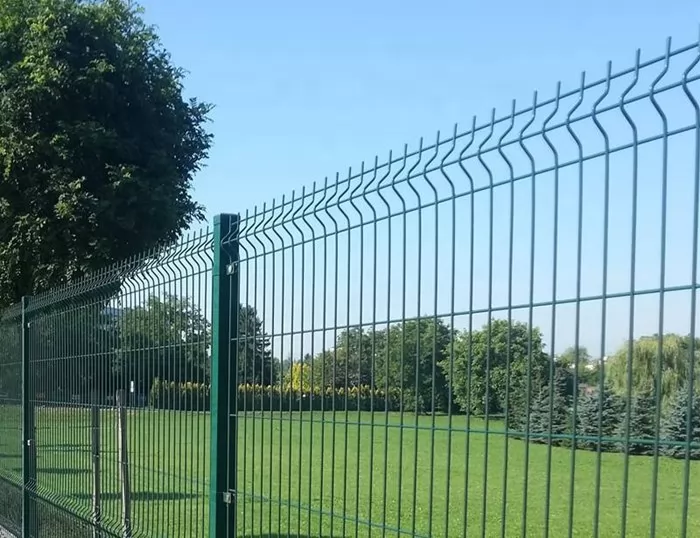

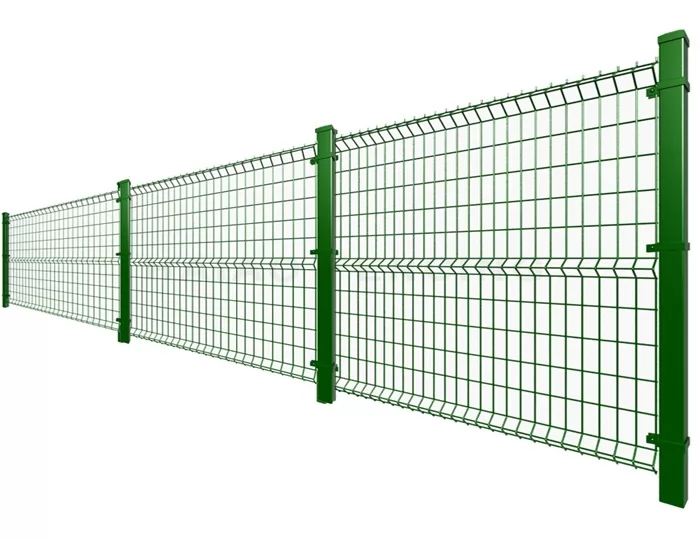

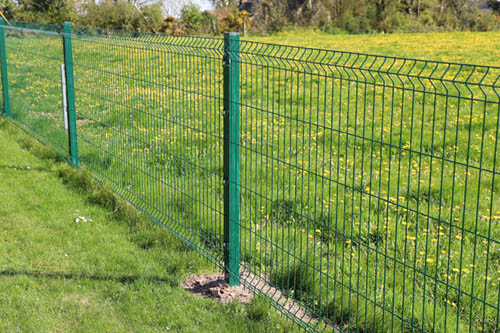

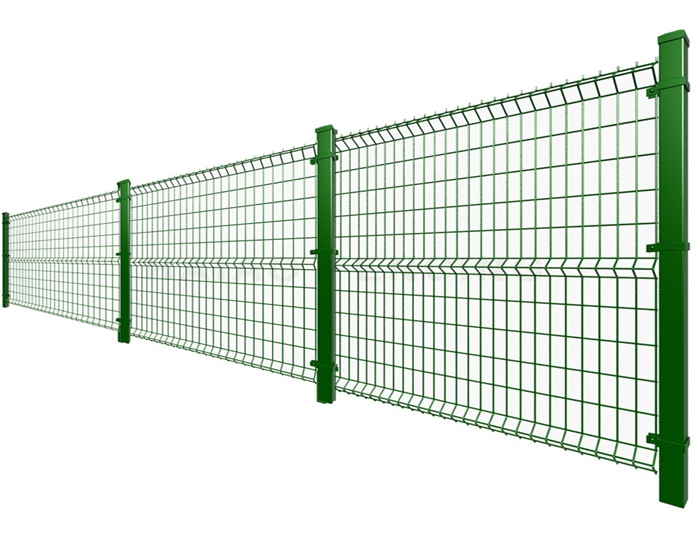

Square Post Fence
Square Post FenceSquare Post FenceSquare Post FenceSquare Post Fence

Square Post Fence


Material:              Q195 or Q235 wire and pipe

Size:                    General specifications or customized on request

Certificate:           SGS, BV, ISO9001, ISO14001, ISO45001

Brand:                  HG Fencing

Manufacturer:      HUA GUANG

Origin:                  China



Inquire Now
Share:
Square Post FenceSquare Post FenceSquare Post FenceSquare Post Fence
Specification

Description of Square Post Fence

Square Post Fence also be called 3D Panel Fence, V mesh security fencing or curved mesh fence, it has simple structure and nice appearance, The V curves will make the welded mesh panel more stable and stronger.


▶ The 3d bending mesh of Square Post Fence can effectively increase the sturdiness of the mesh compared to the traditional mesh, which will not deform and increase the service life.

▶ Square Post Fence is made of galvanized pipe with PVC coating, which provides excellent anti-corrosion performance.

▶ Square Post Fence can be installed around homes, gardens, public facility buildings and playgrounds, as well as around factories and various storage or warehouse areas.

Hua Guang is a wire mesh fence supplier with over twenty years of manufacturing experience, which can provide high quality fences and perfect after-sales service.


Specification of Square Post Fence

Welded mesh panel:

  • ● Material: high quality galvanized wire or low carbon steel wire

  • ● Wire Diameter: 3 mm - 6 mm.

  • ● Mesh Opening: 50 mm × 100 mm, 55 mm × 100 mm, 50 mm × 200 mm, 55 mm × 200mm etc.

  • ● Length: 2.5 m or 3.0 m.

  • ● Height: 0.5m - 4.0 m, depending on your usage needs.

  • ● Surface Treatment: hot dipped galvanized, PVC coated after galvanized or powder coated after galvanized.

Technical Parameters of Welded Mesh Panel:

Heightwire diameterMesh openingPanel Width
830mm3.0mm - 6.0mm50* 100mm 55*100mm 50*200mm 55*200mm2.5m or 3.0m
1030mm
1230mm
1430mm
1530mm
1730mm
1830mm
2030mm
2430mm
2530mm

Other specifications, surface treatment can be customized according to your needs

hot dipped galvanized 3d curved fence panelsPVC coated 3d curved fence panels

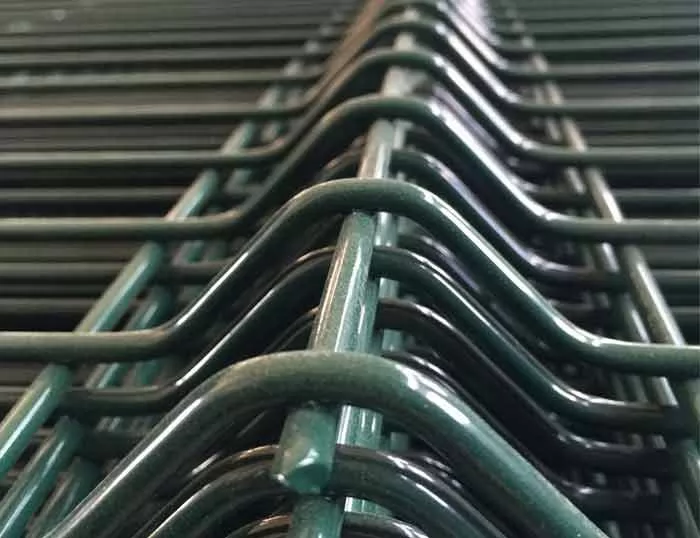

Bending Type of mesh panel:

3D curved fence panel is made of high quality steel wire. These bends will significantly enhance the sturdiness of the mesh, and there are different numbers of curves on the safety fence panels depending on the height.

 Height: 630 mm, 830 mm, 1030 mm, 1230 mm (2 curves).

 Height: 1530 mm, 1730 mm (3 curves).

 Height: 2030 mm, 2230 mm, 2430mm (4 curves).

Bending Type of Square Post Fence


Square Post:

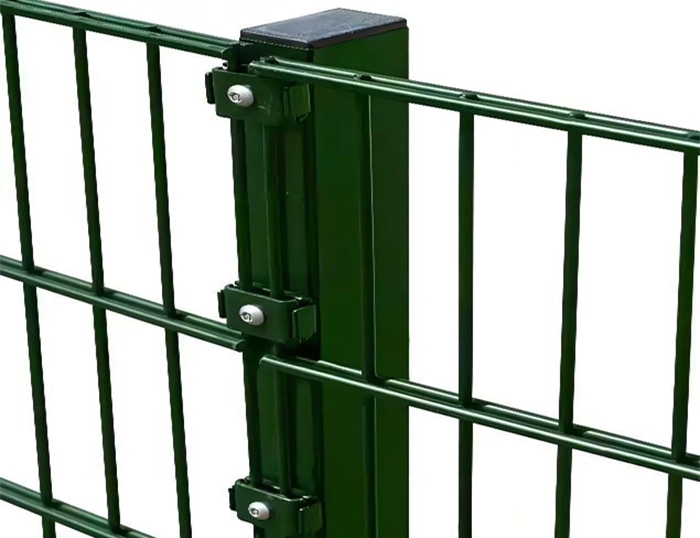

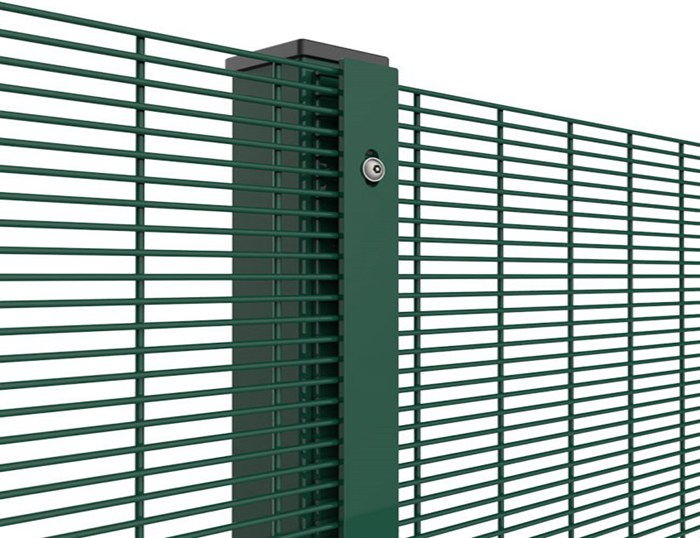

Square posts are a widely used type of fence post and can be used to support almost all types of metal fence panels,such as 3d security fence, double wire fence, 358 security fence etc., square posts are made of high quality low carbon steel or hot rolled steel for high strength.

  • ● Material:low carbon steel or hot rolled steel.

  • ● Thickness: 1mm - 4mm

  • ● Length: depending on the height of the mesh, or special sizes can be customized upon request.

  • ● Surface treatment: hot dipped galvanized, PVC coated or powder coated.

Technical Parameters of Square Post:

Post typePost size(mm)

Post thickness

(mm)

Square post50 × 501 – 2
Square post60 × 601 – 3
Square post80 × 802 – 4
Square post100 × 1002 – 4
Rectangular post40 × 601 – 3
Rectangular post40 ×801 – 4
Rectangular post60 × 801 – 4
Rectangular post80 × 1002 – 4

Post Type:

● Square Post

● Rectangular Post

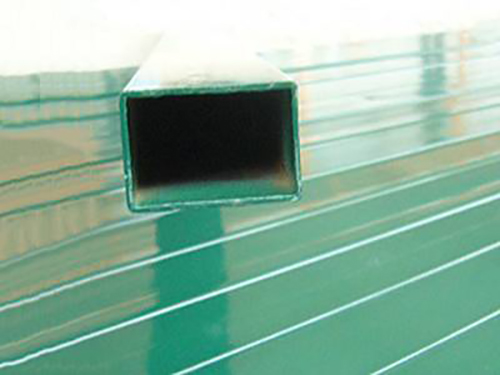

Square postrectangular post














Surface Treatment of Square Post Fence:

1. Hot Dipped Galvanized Square Post Fence

Through the Hot dipped galvanizing process after welding, a protective layer is formed on the steel surface. This coating can effectively prevent oxidation corrosion and prolong the service life of steel.


2. Plastic Coating (PVC Coating) Square Post Fence or Powder Coating Squre Post Fence after galvanized.

We choose high quality powder for spraying, which combines with the galvanized layer on the steel surface to form a more effective protective layer. It can better prevent the steel from oxidation and corrosion, Therefore, our fencing system can stay beautiful and strong for a longer time, and this treatment will make the fence more beautiful.


galvanized 3d curved fencePVC coated 3d curved fence
















Details of Square Post Fence

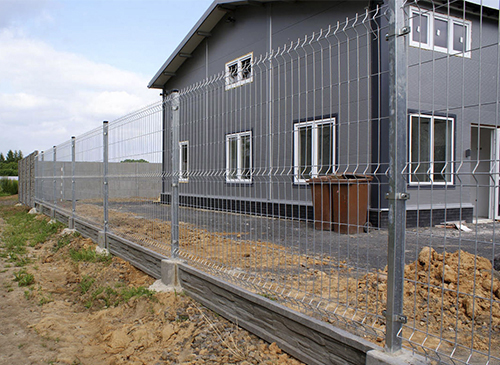

Installation Method of Square Post Fence:

● Embedded the post in the earth or concrete.

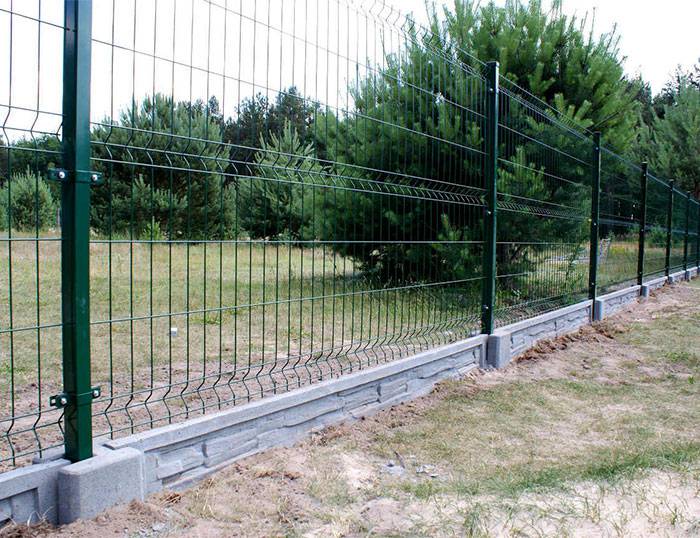

● Bolted to a concrete foundation.


buried in earth square post fenceBolted to concrete Square Post Fence

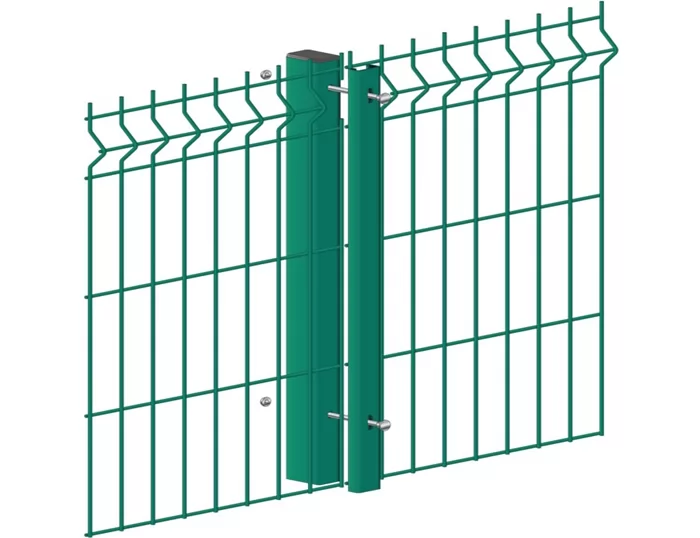

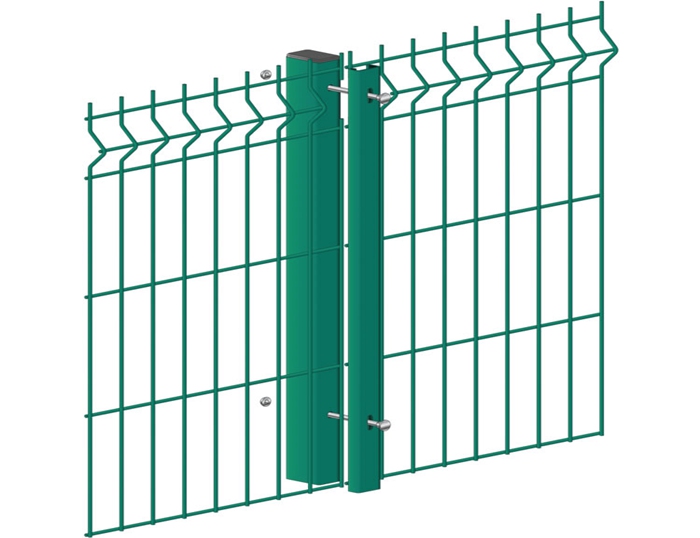

Accessories of Square Post Fence:

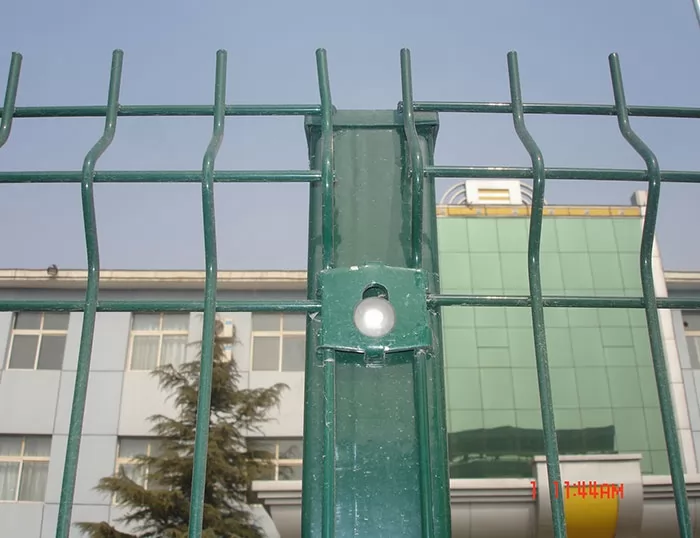

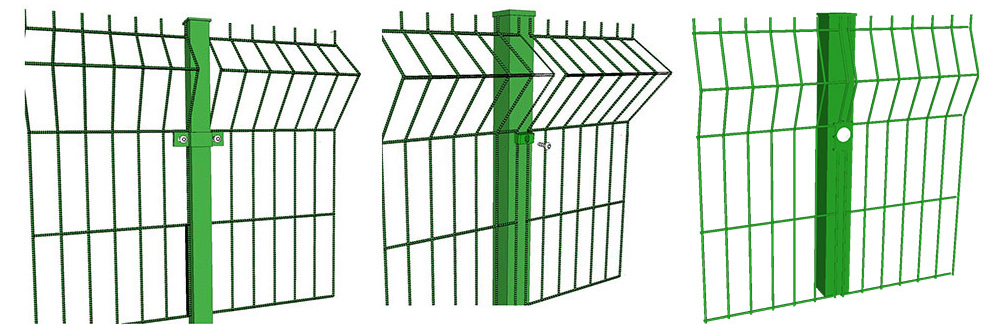

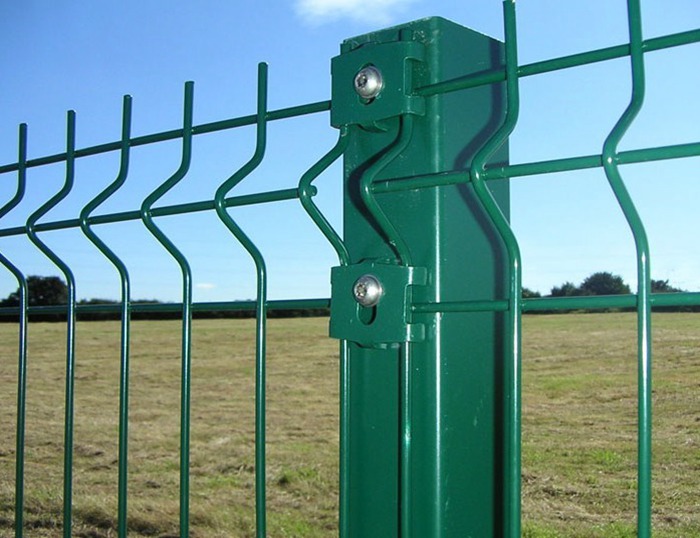

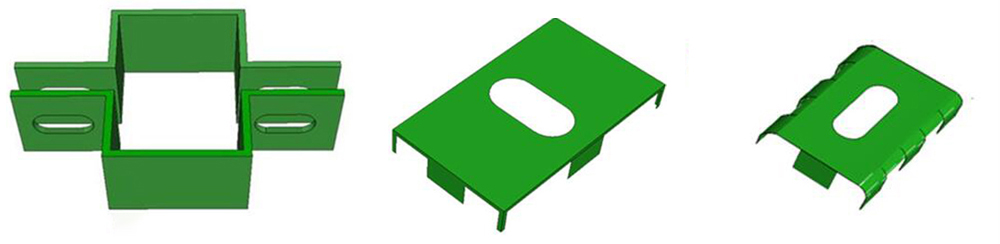

Clamps:

The clips can fix the mesh and the column so that they are tightly fixed together. The clips are divided into plastic clips and galvanized iron clips, which are UV resistant, rust resistant and corrosive, and have a long service life.


clamps of V curved mesh fence

Square Post Fence

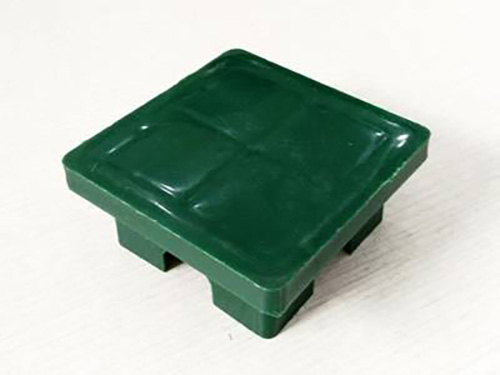

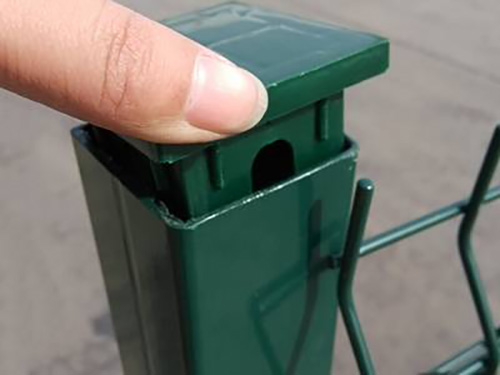

Rainproof Cap

The rainproof cap of the square post can prevent rain and snow, dust and other impurities from entering, which can prevent the corrosion inside the column. Improve the service life of the square post fence.

plastic cap of square postrainproof cap of square post










Popular Colors of Square Post Fences

 RAL 6005 green, RAL 7016 grey, RAL 9005 black are common colors, all RAL colors for Square Post Fences can be customized.

color of 3D curved wire mesh fence

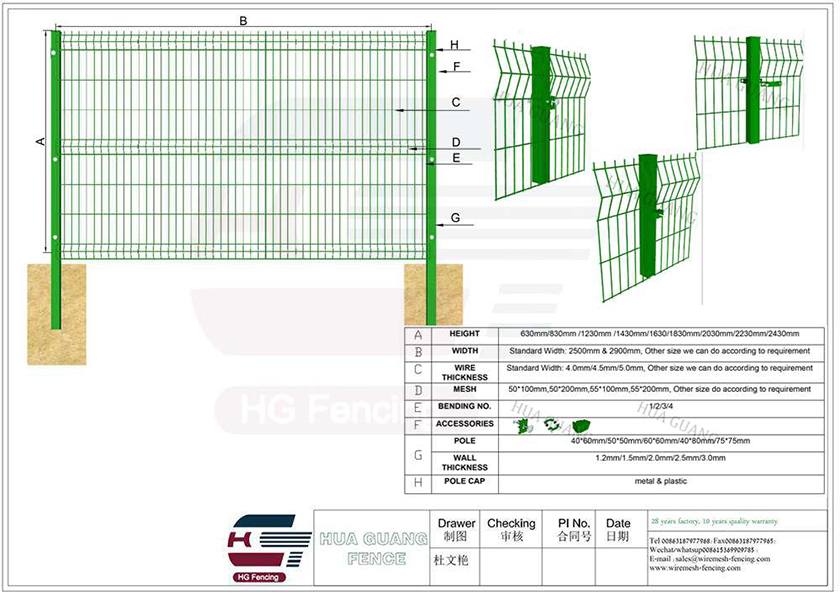

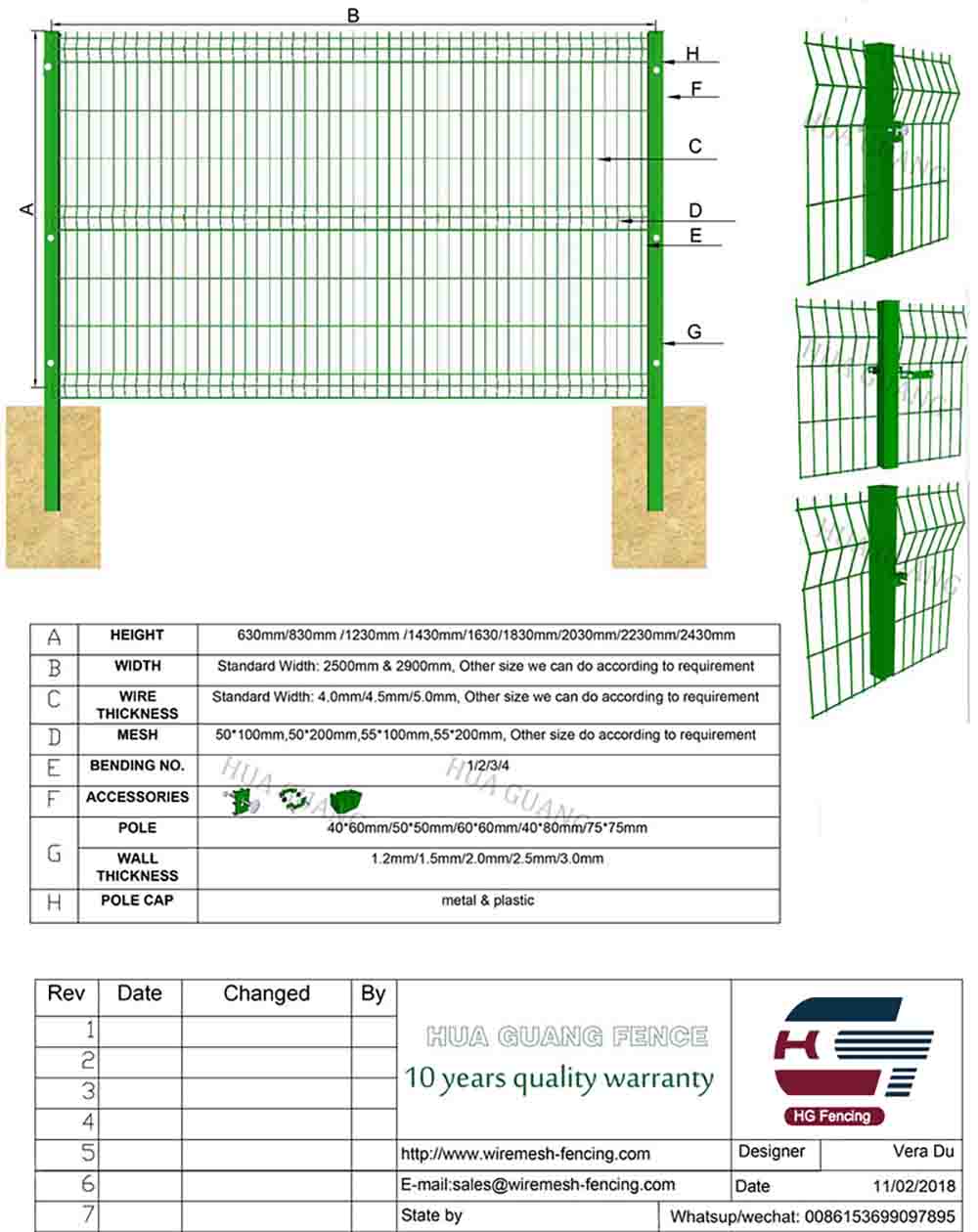

Drawing

          3d Security Fence with Square Post

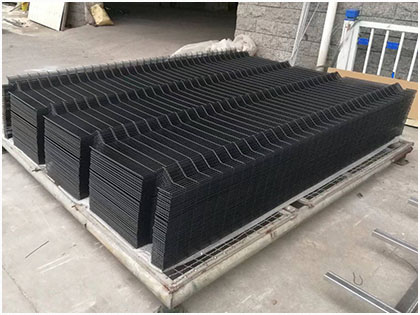

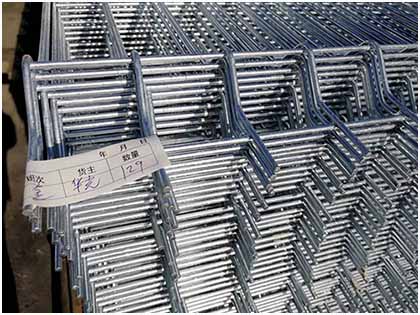

Packing & Delivery
