Defensive Barrier
Defensive Barriermilitary barriermilitary bastionDefensive BarrierDefensive Barrier

Defensive Barrier


Material:              Steel wire and non-woven geotextile

Certificate:           SGS, BV, ISO9001, ISO14001, ISO45001

Brand:                  HG Fencing

Manufacturer:      HUA GUANG

Origin:                  China


Inquire Now
Share:
Defensive BarrierDefensive BarrierDefensive BarrierDefensive BarrierDefensive Barrier
Specification

Description of Defensive Barrier

Defensive Barrier also named defensive sand wall or military barrier, is a multi-cell barrier system lined with a heavy-duty non-woven polypropylene geotextile made of welded zinc-aluminum coated steel mesh or galvanized steel wire mesh.

It is commonly used for flood barriers and military defensive barriers, therefore, it is sometimes called flood barrier, military bastion.

Specification of Defensive Barrier

● Material: galvanized steel wire or zinc - 5% aluminum wire

● Wire diameter: 4.0mm - 6.0mm

● Mesh opening: 6.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm, etc.

● Non-woven geotextile: weight range is 200 - 400 g/㎡, thickness: 2.0mm - 3.5mm. the colors include green, grey, dark yellow, earth yellow.


size of Defensive Barrier


Standard sizes
Height
Width
Length
Cells
MIL1
54''(1.37m)
42''(1.06m)
32'9''(10m)
4+5 cells
MIL2
24''(0.61m)
24''(0.61m)
4'(1.22m)
2 cells
MIL3
39''(1.00m)
39''(1.00m)
32'9''(10m)
5+5 cells
MIL4
39''(1.00m)
60''(1.52m)
32'9''(10m)
5+5 cells
MIL5
24''(0.61m)
24''(0.61m)
10'(3.05m)
5 cells
MIL6
66''(1.68m)
24''(0.61m)
10'(3.05m)
5 cells
MIL7
87''(2.21m)
84''(2.13m)
91'(27.74m)
4+4+5 cells
MIL8
54''(1.37m)
48''(1.22m)
32'9''(9.14m)
4+5 cells
MIL9
39'(1.00m)
30''(0.76m)
30'(9.14m)
6+6 cells
MIL10
87''(2.21m)
60''(1.52m)
100'(30.5m)
5+5+5+5 cells
MIL11
48''(1.22m)
12''(0.3m)
4'(1.22m)
4 cells
MIL12
84''(2.13m)
42''(1.06m)
108'(33m)
5+5+5+5+5+5 cells
MIL19
108''(2.74m)
42''(1.06m)
10'5''(3.18m)
3 cells

Surface Treatment of defensive barrier

● Hot dipped galvanized before welded (common zinc layer) : 40 -80 g/㎡,  The zinc layer is thin and has average corrosion resistance, making it suitable for use in dry, low rainfall environments.

● Hot dipped galvanized before welded (thick zinc layer) : 240 - 260 g/㎡,  The amount of zinc is thick, suitable for various environments and a wide range of applications, making it the choice of many customers.

● Hot dipped galvanized after welded (thicker zinc layer ) : 450 -500 g/㎡,The amount of zinc is so thick that it will last for many years, even in a constantly humid, salty environment.

● Zinc - 5% aluminum wire : Zinc-aluminum alloy wire is a new type of material whose main advantages are better plasticity and adhesion of the coating and much higher resistance to atmospheric corrosion than conventional hot-dip galvanizing.


Details of Defensive Barrier


Panel of Defensive BarrierDefensive Barrier

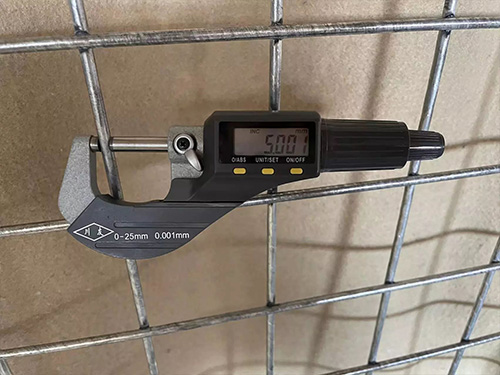

spiral wire of Defensive Barrierwire diameter of Defensive Barrier









Connection types of defensive barrier

The defensive barrier is usually connected with spiral wire, which allows the gabion mesh box to be folded up for easy loading and transportation, and it can be quickly shaped, filled with soil or stones and put into application when in use. The springs are all made of high strength steel wire, which can greatly improve the sturdiness of the defensive barrier.


Spiral Wire of Defensive BarrierSpiral Wire of Defensive Barrier









Application of Defensive Barrier

● Defensive Barrier is widely used in military warfare and can be quickly built to form defensive shelters that can effectively prevent bullets and explosive shrapnel shockwaves from harming soldiers.

● Defensive Barrier can also be used for flood control, filled with soil or rocks to form a strong defensive wall, making it difficult for water to pass through and maintaining the safety of the river.


military bastion Barrierflood Defensive Barrier

















Drawing

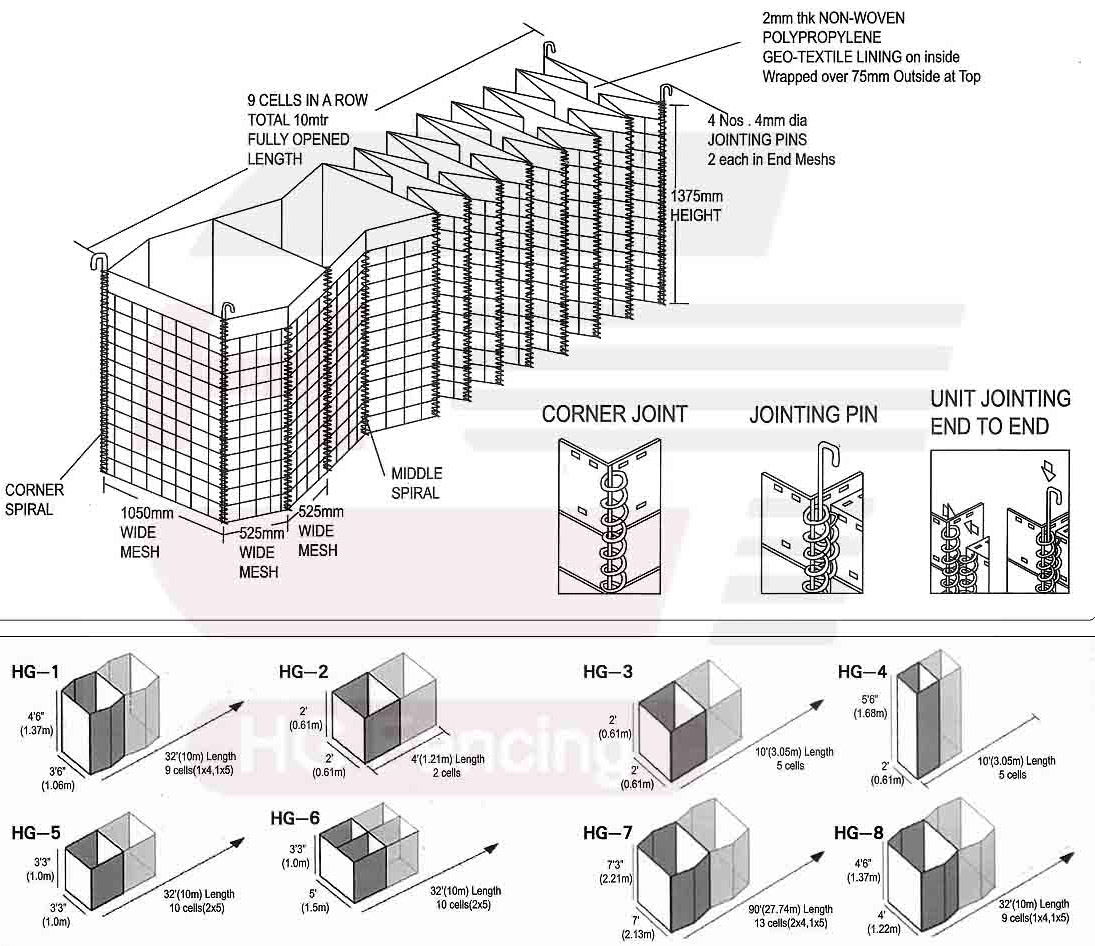

Drawing of Defensive Barrier

Packing & Delivery
packing of Defensive Barrier
packing of Defensive Barrier
packing of military barrier
packing of military barrier
packing of flood barrier
packing of flood barrier
packing of Defensive sand wall
packing of Defensive sand wall
Project
Defensive Barrier
Defensive Barrier
military barrier
military barrier
flood barrier
flood barrier
Defensive sand wall
Defensive sand wall
