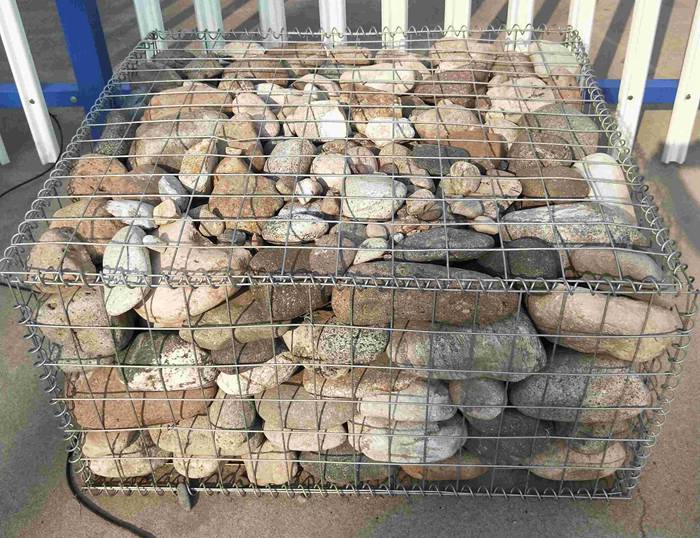

Welded Gabion Basket filled with stone
Welded Gabion BasketWelded Gabion BasketWelded Gabion BasketWelded Gabion BasketWelded Gabion Basket

Welded Gabion Basket


Material:              Iron Steel Wire

Certificate:           SGS, BV, ISO9001, ISO14001, ISO45001

Brand:                  HG Fencing

Manufacturer:      HUA GUANG

Origin:                  China


Inquire Now
Share:
Welded Gabion BasketWelded Gabion BasketWelded Gabion BasketWelded Gabion BasketWelded Gabion Basket
Specification

Welded Gabion Basket

☼ Welded Gabion Basket Description

Welded gabion baskets are wire mesh containers welded with high quality steel wires, which are then screwed together. They can be filled on site with hard, durable stone to form large-scale gravity-fed structures. Welded gabion baskets are mainly used for protecting bridges, preventing rockfalls and preventing erosion of riverbanks, etc.

Welded gabion baskets can also be made into various sizes and shapes as needed for decorative roles, such as gabion landscape, gabion tables, gabion benches, etc.

☼ Welded Gabion Basket Specification

Material: Steel wire, galvanized wire, galfan wire (zinc aluminium coating wire)

Wire Diamter: 3.0 - 6.0 mm

Mesh Opening Types: Square opening, rectangle opening

Finished:  Hot dipped galvanized, PVC coated


Gabion Size(m)Mesh Opening(mm)Wire Diameter(mm)Surface treatment
0.5x0.5x0.5Square Opening:
50x50
75x75
100x100

150x150


Rectangle opening:
30X50
30X80
50X80
50X100
50X150
100X200

3.0 - 6.0
Hot dip galvanized

Galfan coated
(Zinc-5%AL  aluminum)
(Zinc-10%AL  aluminum)

PVC coated/ Plastic coated
1x1x0.3
1x0.8x0.3
1x1x0.5
1x1x1
2x1x0.3
2x1x0.5
2x1x1
3x1x1
4x1x1
Other sizes are available on request

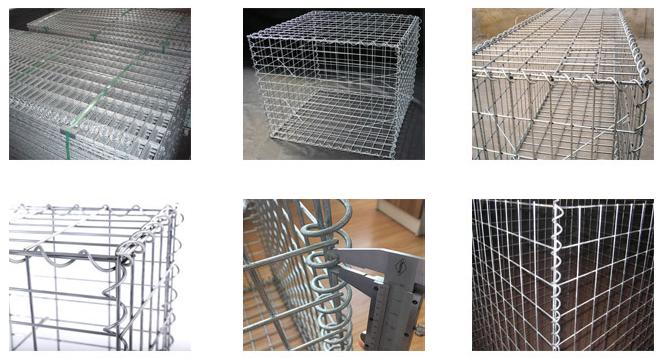

☼ Welded Gabion Basket Details

Welded Gabion Basket Detail

☼ According to the surface treatment, welded gabion basket including  galvanized gabion basket and PVC coated gabion basket.

Type 1: Hot dipped galvanized: normal zinc coating is 40-80g/㎡, heavy galvanized gabions zinc coating is 220-300g/㎡. The higher the zinc content, the better the corrosion resistance.

Type 2: PVC coated gabions are generally welded with galvanised or Galfan wires and then dipped or sprayed with plastic for higher corrosion resistance.


Galvanized Welded Gabion BasketPVC coated Welded Gabion Basket


☼ Connection Types of welded gabion basket: spiral wire connection, lacing wire conncetion, C ring connection, U clip connection


type 1: spiral wire connection gabion basket, it is easy to install, simply rotate the spring wire into the welded mesh joints, very strong.

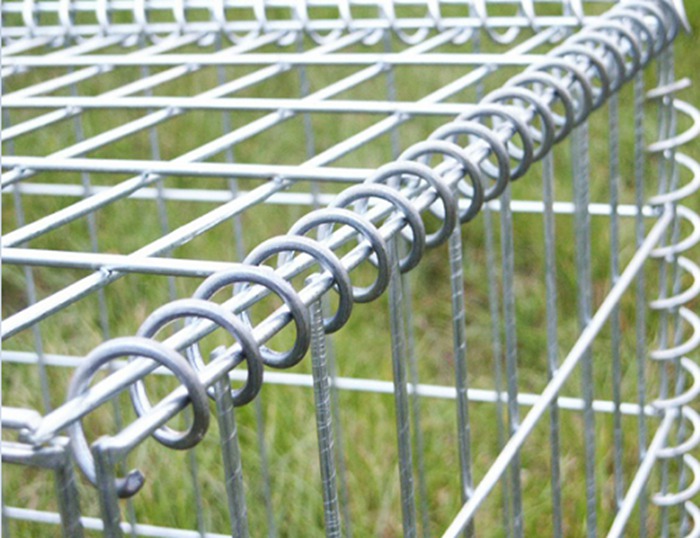

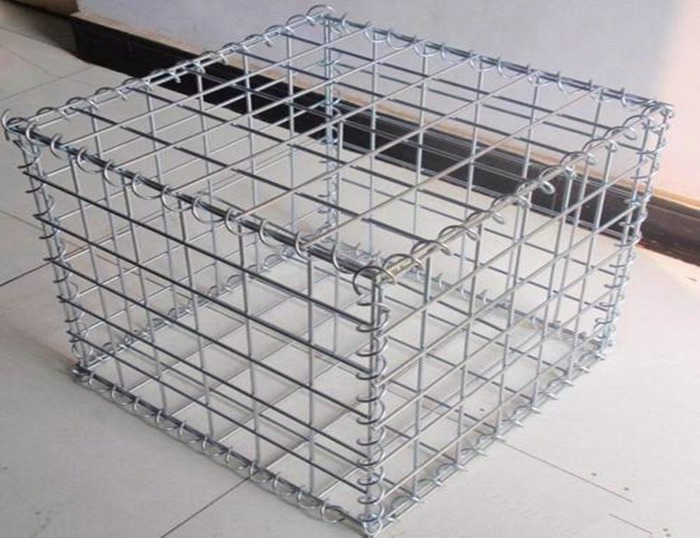

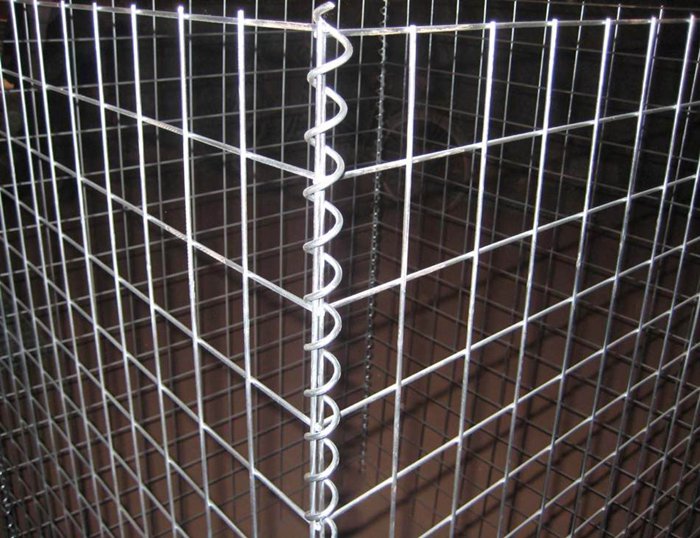

Spiral wire of Welded Gabion BasketWelded Gabion Basket with spiral wire connection


type 2: lacing wire conncetion gabion basket, it is slightly more complicated than spring wire, requires manual tightening.


lacing wire of Welded Gabion BasketWelded Gabion Basket with lacing wire conection


type 3: C ring connection gabion basket, easy to install, simply clamp the C ring to two adjacent meshes and then clamp with special pliers.


C ring of Welded Gabion BasketWelded Gabion Basket with C ring connection


type 4: U clip connection gabion basket,easy to install, simply clamp the U clip to two adjacent meshes and then clamp with special pliers.


U clip of Welded Gabion BasketWelded Gabion Basket with U clip connection

☼ Welded Gabion Basket Installation

1.Stand up the welded gabion panels in all four directions, and if there is a middle diaphragms, stand up as well.

2. Use spiral wire to rotate into the intersection of two welded gabion panels to make the two panels link up, you can also use lacing wire, C-ring, U-clip etc to connect the neighbouring panels.

3. Fix the stiffeners on the two horizontal wires in the middle of the mesh panels, make sure the stiffeners are across the corners, which can improve the strength of the gabion basket and avoid deformation.

4. Fill the welded gabion basket with suitable sized stones, soil or sand.

5. Cover the lid and fix it with spring wire, lacing wire, C ring, U clip etc.

6. Arrange the gabion box according to the design requirements.


Prepare the gabion panels assembly and then stand the four panels of mesh upConnect the welded gabion panels with spring wireInstallation of stiffeners to increase the strength of the welded gabion basket

Installation of stiffeners to increase the strength of the welded gabion basket.Cover the welded gabion box with a lid and then secure it with spring wirePlacement of welded gabion basket according to the design requirements of the drawings

☼ Welded Gabion Basket Application

☼ 1. Welded gabion baskets have a wide range of applications and can be used for protection of riverbanks, bridges and slopes, and soil reinforcement.

Welded Gabion Basket used for Protection of riverbed and bridgeWelded Gabion Basket used for slopes protection


☼ 2. Welded gabion baskets can be combined with geotextiles and filled with soil inside, and can be used as defensive barriers for military protection against injuries caused by blast shockwaves or shrapnel, as well as for flood control.

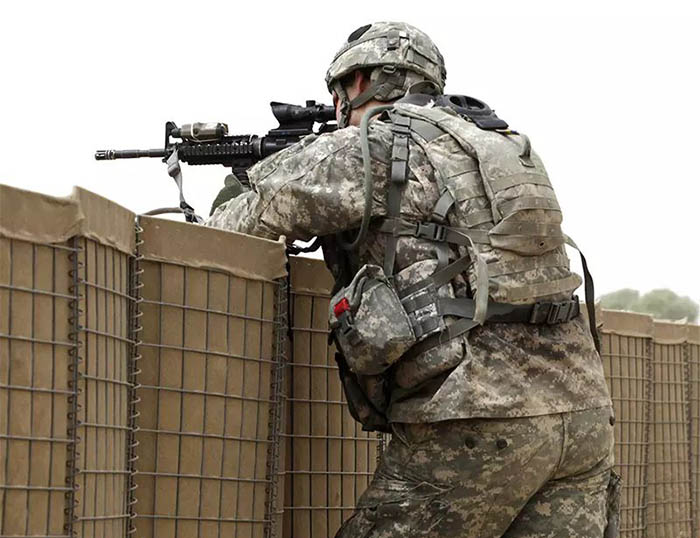

Welded Gabion Basket as defensive barrier used for military protectionWelded Gabion Basket used for flood control


☼ 3. Welded gabion baskets can be used as decorations to make landscapes, benches, planters, barrier walls, etc.

Welded gabion baskets used to make benchesWelded gabion baskets used to make landscapes

Drawing

Drawing of Welded Gabion Basket

Packing & Delivery
Packing of Welded Gabion Basket
Packing of Welded Gabion Basket
Packing of Welded Gabion Basket
Packing of Welded Gabion Basket

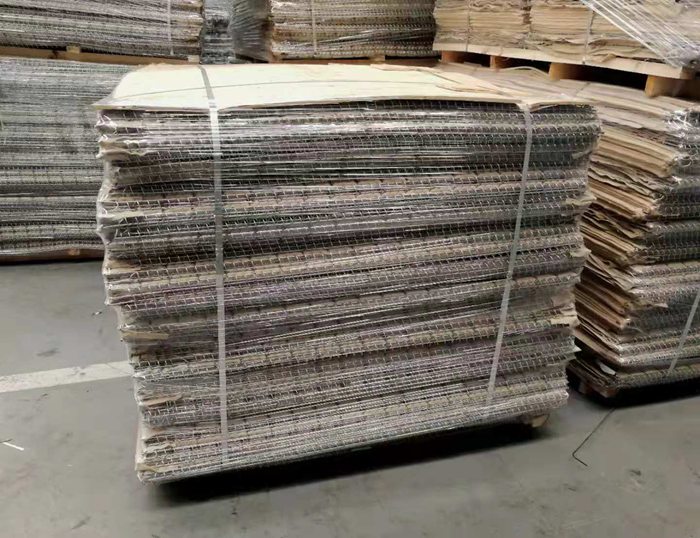

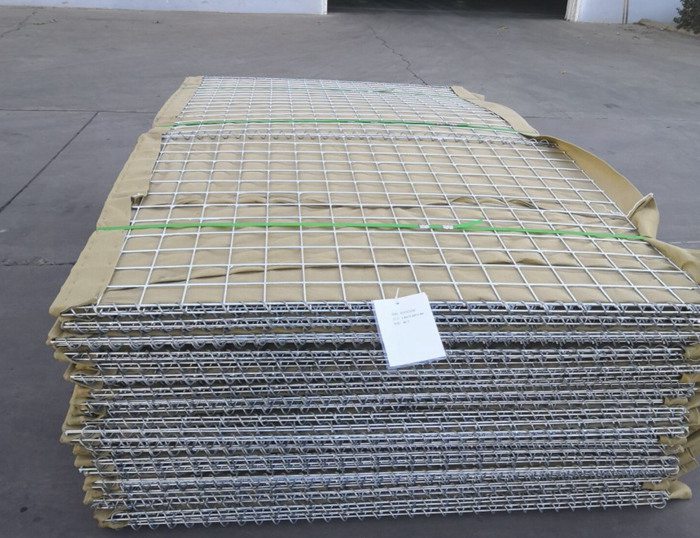

Packing of Welded Gabion panels
Packing of Welded Gabion panels

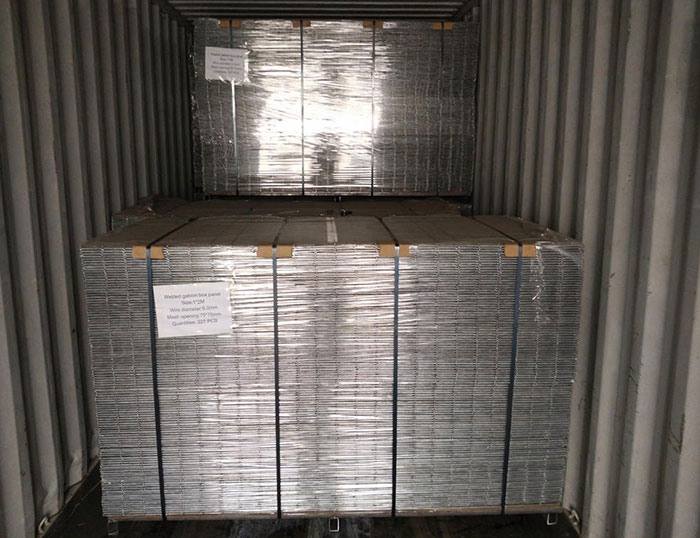

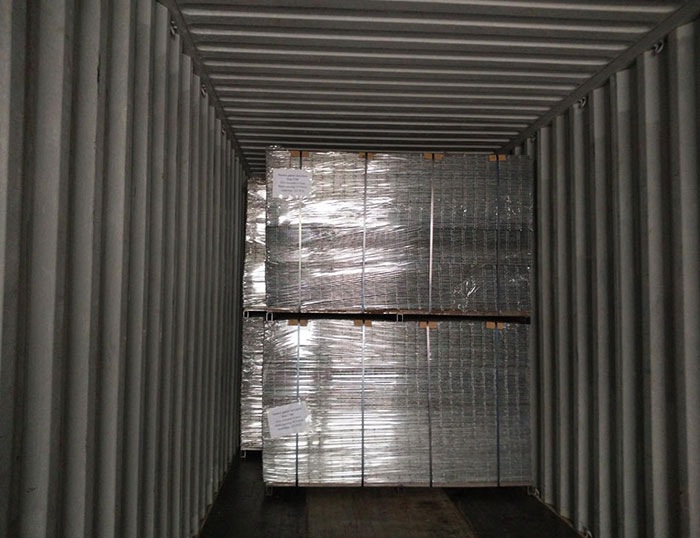

Loading of Welded Gabion Basket
Loading of Welded Gabion Basket
Project
Welded Gabion
Welded Gabion

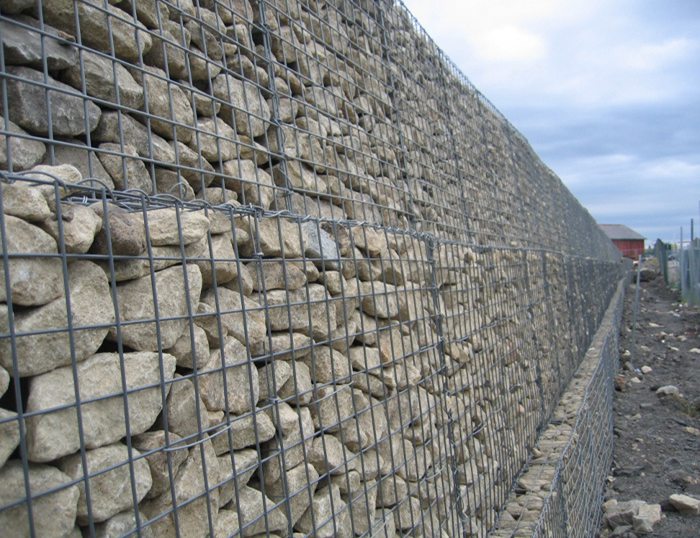

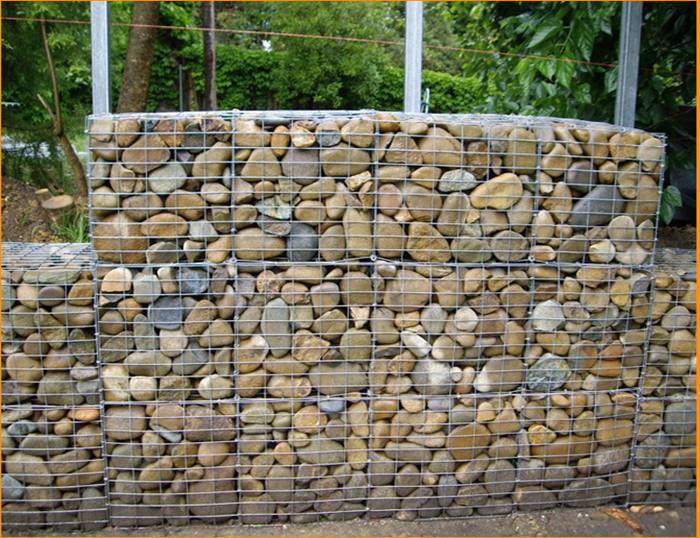

Gabion Retaining Wall
Gabion Retaining Wall

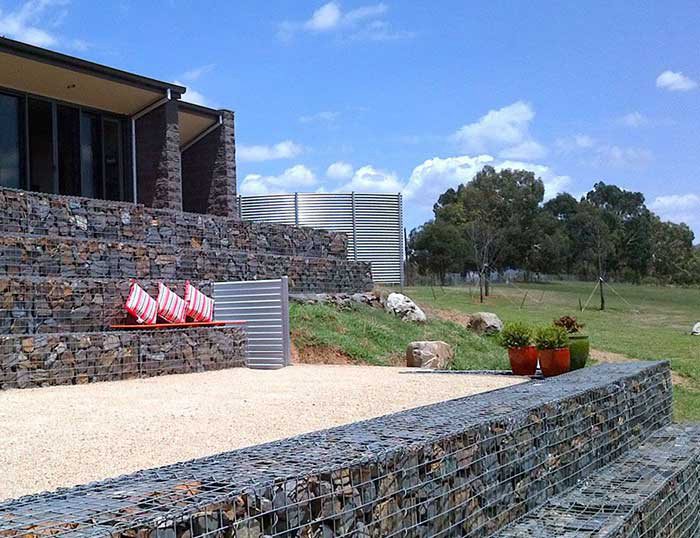

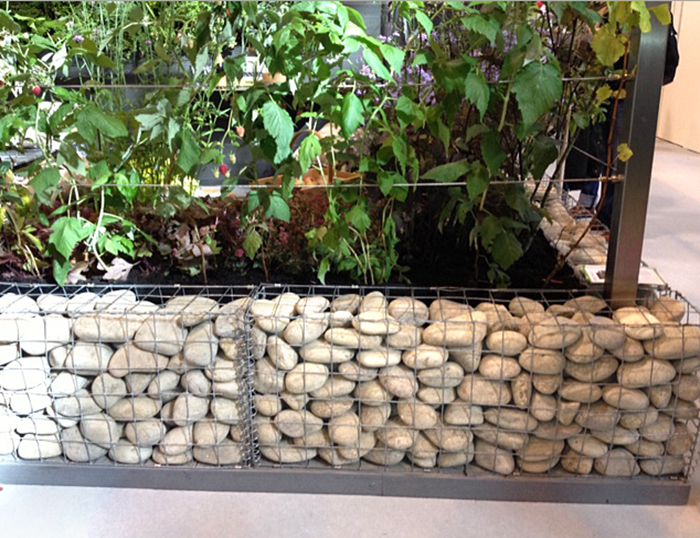

Welded Gabion Basket used as landscaping
Welded Gabion Basket used as landscaping
Welded Gabion used for dam protection
Welded Gabion used for dam protection
