Introduction of Roll Top Mesh Fence

Mar. 17, 2022

Introduction of Roll Top Mesh Fence

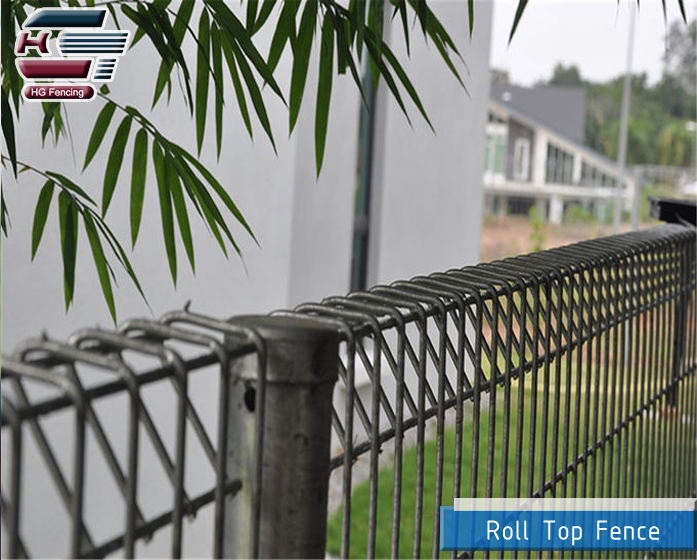

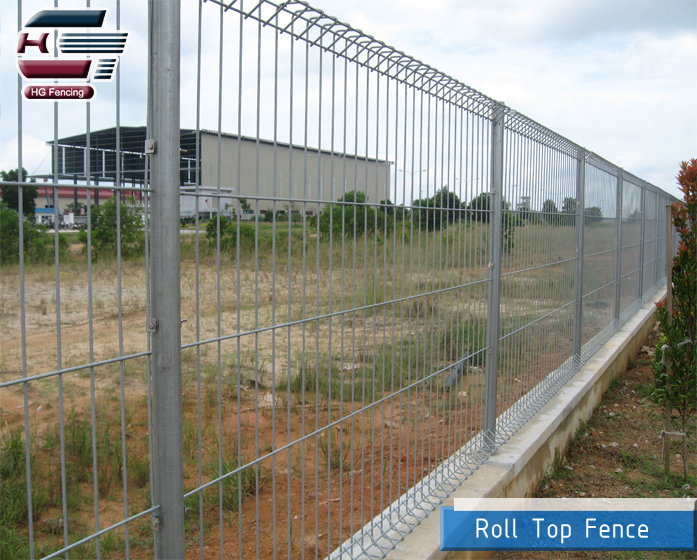

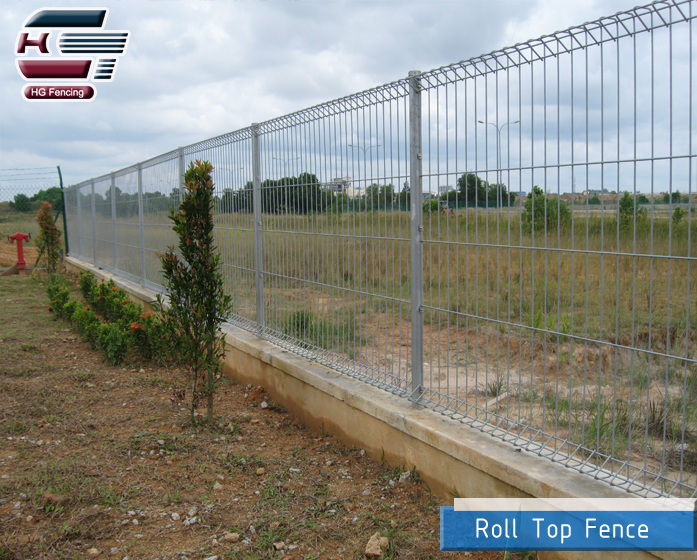

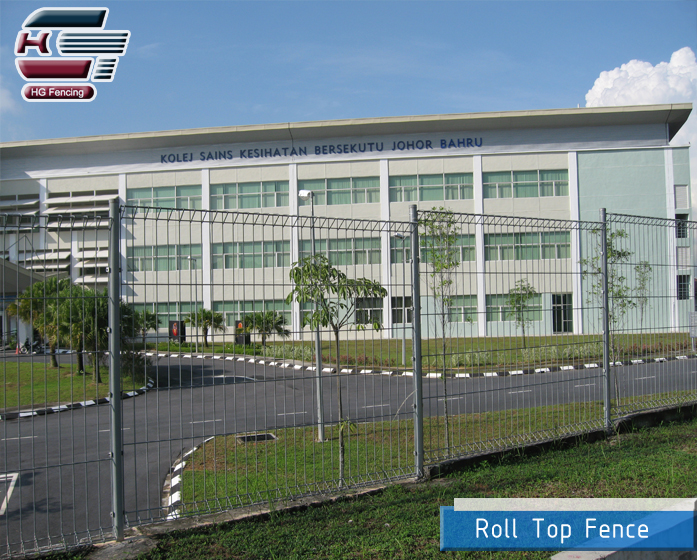

Roll top wire fence can also be called BRC fence, it is designed to have a triangular on the top and bottom of the fence, which makes it more strong and tough. Roll top fence prevents people from easily climbing over the fence to reach the protected area.


* Material: Q195, steel wire

* Surface treatment:

I. Black wire welded mesh + pvc coated;

II. Galvanized welded mesh + pvc coated;

III. Hot dipped galvanized welded mesh + pvc coated.

  (PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.)


Introduction of Roll Top Mesh Fence

BRC roll top and bottom fence panel from HuaGuang Fencing

Wire diameter 3.5-6.0mm

Mesh size 50x100mm,75x150mm,50x200mm

Height 1030mm, 1230mm, 1530mm, 1830mm, 2030mm,2430mm

Length 2000mm,2500mm

Surface treatment Powder coated, Pvc coated ,Hot dipped galvanized

Introduction of Roll Top Mesh Fence

Post Type of BRC Fence from HuaGuang Fencing

(1)Square post(mm): 40 x 40; 50 x 50; 60 x 60; 80 x 80;   thickness: 1.2mm, 1.5mm, 2.0mm, 2.5mm

(2)Round post(mm): 38, 48, 60, 75;  thickness: 1.2mm, 1.5mm, 2.0mm, 2.5mm

(3)Peach post(mm): 50 x 70,  70 x 100;  thickness: 1.2mm

(4) I shape post(mm): 70 x 44;  thickness: 1.5mm

Post Installation

a.  be bury into ground

b.  with steel flange base


The roll top fencing system from HuaGuang Fencing is a unique rolled beam section at the top and bottom of the fence providing a user friendly surface.
